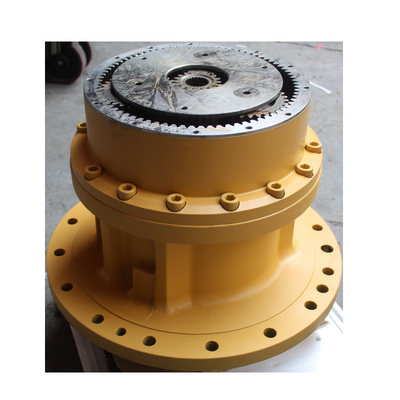

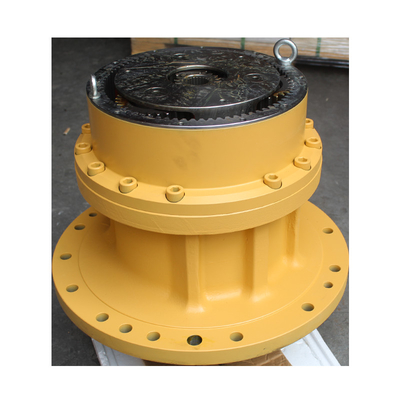

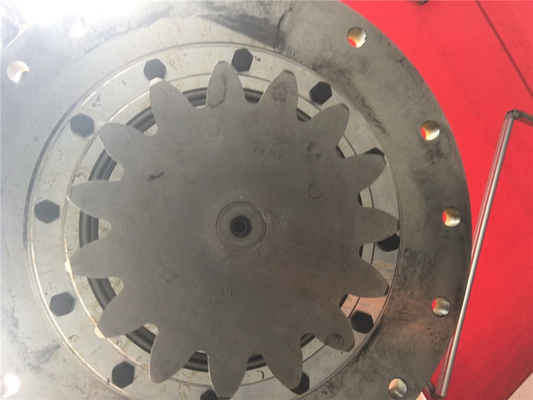

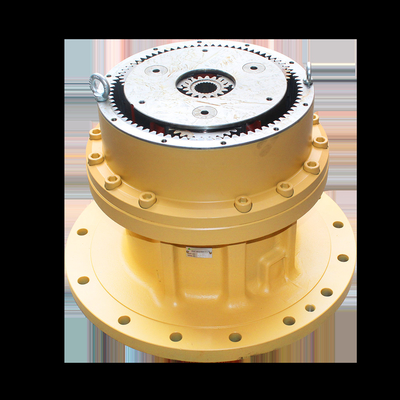

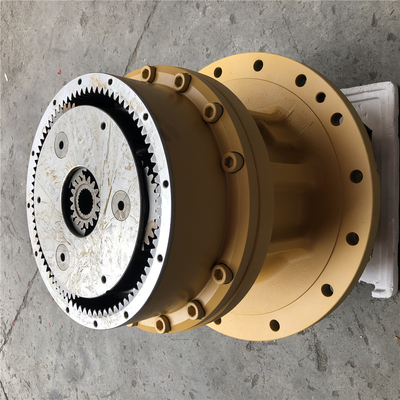

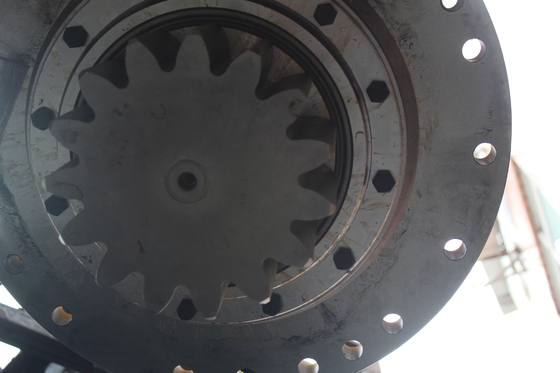

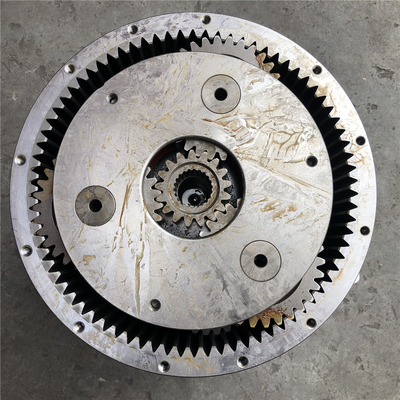

Коробка передач качания уменьшения R300-9 39Q8-12100 31Q8-10141 31Q8-11141 качания экскаватора
Описание продукции
Изображение детали
| Pos. | Номер детали | Qty | Имя частей | Комментарии |
|---|---|---|---|---|
| *-2. | 39Q8-12100 | [1] | ШЕСТЕРНЯ УМЕНЬШЕНИЯ КАЧАНИЯ | СМ. 4107 |
| *-2. | 39Q8-12101 | [1] | ШЕСТЕРНЯ УМЕНЬШЕНИЯ КАЧАНИЯ | СМ. 4107 |
| 1. | 39Q8-12110 | [1] | КОЛЬЦО ШЕСТЕРНИ | |
| 2. | 39Q8-12120 | [1] | SHAFT-DRIVE | |
| 3. | 39Q8-12130 | [1] | BEARING-SPH.ROLLER | |
| 4. | 39Q8-12140 | [1] | BEARING-SPH.ROLLER | |
| 5. | 39Q8-12150 | [1] | PLATE-THRUST | |
| 6. | 39Q8-12160 | [1] | RING-SNAP | |
| 7. | 39Q8-12170 | [1] | КРЫШКА | |
| 8. | S017-120306 | [12] | BOLT-HEX | |
| 9. | 39Q8-12180 | [1] | КОЖУХ | |
| 10. | S632-290001 | [1] | КОЛЦЕОБРАЗНОЕ УПЛОТНЕНИЕ | |
| 11. | S109-100306 | [12] | BOLT-SOCKET | |
| K12. | 39Q8-12201 | [1] | НЕСУЩАЯ NO.2 | |
| K13. | 39Q8-12211 | [4] | GEAR-PLANETARY NO.2 | |
| K14. | 39Q8-12220 | [4] | BEARING-NEEDLE NO.2 | |
| K15. | 39Q8-12231 | [8] | WASHER-THRUST NO.2 | |
| K16. | 39Q8-12240 | [4] | PIN-CARRIER NO.2 | |
| K17. | S472-910404 | [4] | PIN-SPRING | |
| K18. | 39Q8-12251 | [1] | GEAR-SUN NO.2 | |
| K19. | 39Q8-12261 | [1] | PLATE-THRUST NO.2 | |
| K20. | 39Q8-12281 | [1] | НЕСУЩАЯ NO.1 | |
| K21. | 39Q8-12291 | [3] | GEAR-PLANETARY NO.1 | |
| K22. | 39Q8-12300 | [3] | BEARING-NEEDLE NO.1 | |
| K23. | 39Q8-12311 | [6] | WASHER-THRUST NO.1 | |
| K24. | 39Q8-12320 | [3] | PIN-CARRIER NO.1 | |
| K25. | S472-800404 | [3] | PIN-SPRING NO.1 | |
| K26. | 39Q8-12331 | [1] | GEAR-SUN NO.1 | |
| K27. | 39Q8-12341 | [1] | PLATE-THRUST NO.1 | |
| 28. | 39Q8-12350 | [1] | РУКАВ | |
| 29. | S632-140001 | [1] | КОЛЦЕОБРАЗНОЕ УПЛОТНЕНИЕ | |
| 30. | 39Q6-12350 | [1] | SEAL-OIL | |
| 31. | 39Q6-41450 | [2] | PIN-PARALLEL | |
| 32. | S109-18050D | [14] | BOLT-SOCKET | |
| 33. | 39Q8-12360 | [1] | ИМЕННАЯ ТАБЛИЧКА | |
| 34. | 39Q6-41800 | [2] | ЗАКЛЕПКА | |
| 35. | P220-430204 | [1] | PLUG-HEX | |
| K. | 39Q8-12190 | [1] | ASSY NO.2 НЕСУЩЕЙ | СМ. ILLUST |
| K. | 39Q8-12270 | [1] | ASSY NO.1 НЕСУЩЕЙ | СМ. ILLUST |
